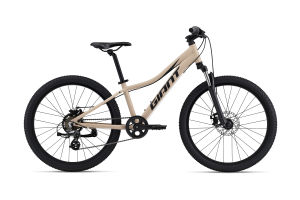

XtC Jr Disc 24

2022

$599 Original price $629

Skip to compare section

Complete Your Rider Experience

Big-time off-road performance in a small package. With an aluminum frame, front suspension and disc brakes, young riders will be ready to conquer the climbs and have fun on the descents.

Key Performance Factors

Lightweight frame

ALUXX-grade aluminum frame provides a lightweight, purpose-built chassis for aspiring young off-road riders.

Confidence and control

Size-specific 24-inch wheels, front suspension and disc brakes give young riders the performance they need for true off-road riding.

Kid-friendly features

Youth-specific performance components help young riders improve their off-road skills.

Techs & Features

ALUXX Aluminum Technology

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • One Size
      130 cm4’3” to 150 cm4’11”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 One Size
A Seat Tube Length (mm) (inch)30512
B Seat Tube Angle (degrees)72.0°
C Top Tube Length (mm) (inch)52020.5
D Head Tube Length (mm) (inch)1204.7
E Head Tube Angle (degrees)70.0°
F Fork Rake (mm) (inch)401.6
G Trail (mm) (inch)692.7
H Wheelbase (mm) (inch)98338.7
I Chain Stay Length (mm) (inch)41016.1
J Bottom Bracket Drop (mm) (inch)240.9
K Stack (mm) (inch)51820.4
L Reach (mm) (inch)35213.9
M Stand Over Height (mm) (inch)61324.1
N Handlebar Width (mm) (inch)56022
O Stem Length (mm) (inch)602.4
P Crank Length (mm) (inch)1526
Q Wheel Size 24"
Specs
  • Sizes
    one size
  • Colours
    Faded Beige
  • Frame
    ALUXX-Grade Aluminum
  • Fork
    Giant WIN254, 50mm
  • Shock
    N/A
  • Handlebar
    Giant Sport, alloy, 31.8mm
  • Grips
    Giant Junior
  • Stem
    forged alloy Ahead, 8-degree
  • Seatpost
    alloy, single-bolt, 27.2x300mm
  • Saddle
    Giant Jr. Sports
  • Pedals
    platform
  • Shifters
    Shimano REVOSHIFT, 1x7
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Tourney
  • Brakes
    mechanical disc [F]160mm, [R]140mm rotors
  • Brake Levers
    alloy, junior MTB
  • Cassette
    14x34
  • Chain
    KMC HV500
  • Crankset
    alloy, 32t, 140mm
  • Bottom Bracket
    semi-cartridge
  • Rims
    Giant Kids 24", alloy
  • Hubs
    nutted, 28h
  • Spokes
    stainless, 14g
  • Tires
    Giant Junior Sport 24x2.1", 22 tpi
  • Extras
    bell, kickstand
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
